| Electric hoist remote control |

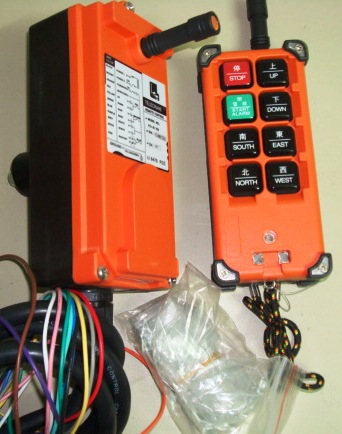

Taiwan TELECRANE F21-E1B single girder crane remote control
This product is also known as: Industrial remote control crane remote control wireless remote control driving lever handle remote CD hoist electric hoist remote control remote control remote control switch. Pull the handle can be used to replace the original console or cab to realize wireless crane operations, improve safety, reliability, convenience, efficiency of operations, improve working conditions, reduce labor intensity.
Transmitter (handheld)
Dimensions: 16.4 × 7.5 × 4.6 cm Weight: about 320 grams receiver Size: 18.5 × 8.5 × 8.5 cm Weight: 550 grams with 8 action buttons, including 7 Single-speed keys, a total stop with a battery voltage warning device when voltage is less than its own circuit;
Control distance: up to 100 meters;
Security Code: 4300000000 kinds of factory and never repeated;
Operating temperature: -35 ℃ to +80 ℃ (without regard to battery temperature);
Protection class: IP65;
Transmitter Power: DC 3V (two alkaline batteries can be used four months);
Receiver Power: AC 380V \ 220V or 36V;
Output contact capacity: 5 amp sealed relay output (AC 250V/10A relays 5 amp fuse).
This model has more than 350,000 total units used worldwide, is the world's most economical and durable industrial remote control.
For single hook, Single-speed electric hoist or hoist-type traffic, cranes and eight contacts with the following industrial remote control.
F21-E1B wiring diagram:
.jpg)
F21-E1B wiring diagram:
|
.jpg){kind=small}
